Axion Mobile

0.9

SMD

1.2

SMD

1.5

SMD

1.8

SMD

2.5

SMD

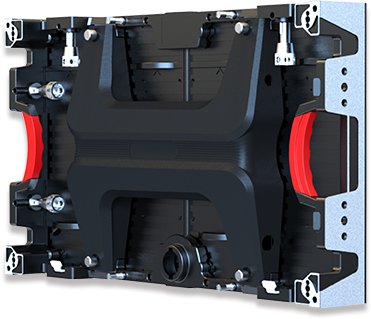

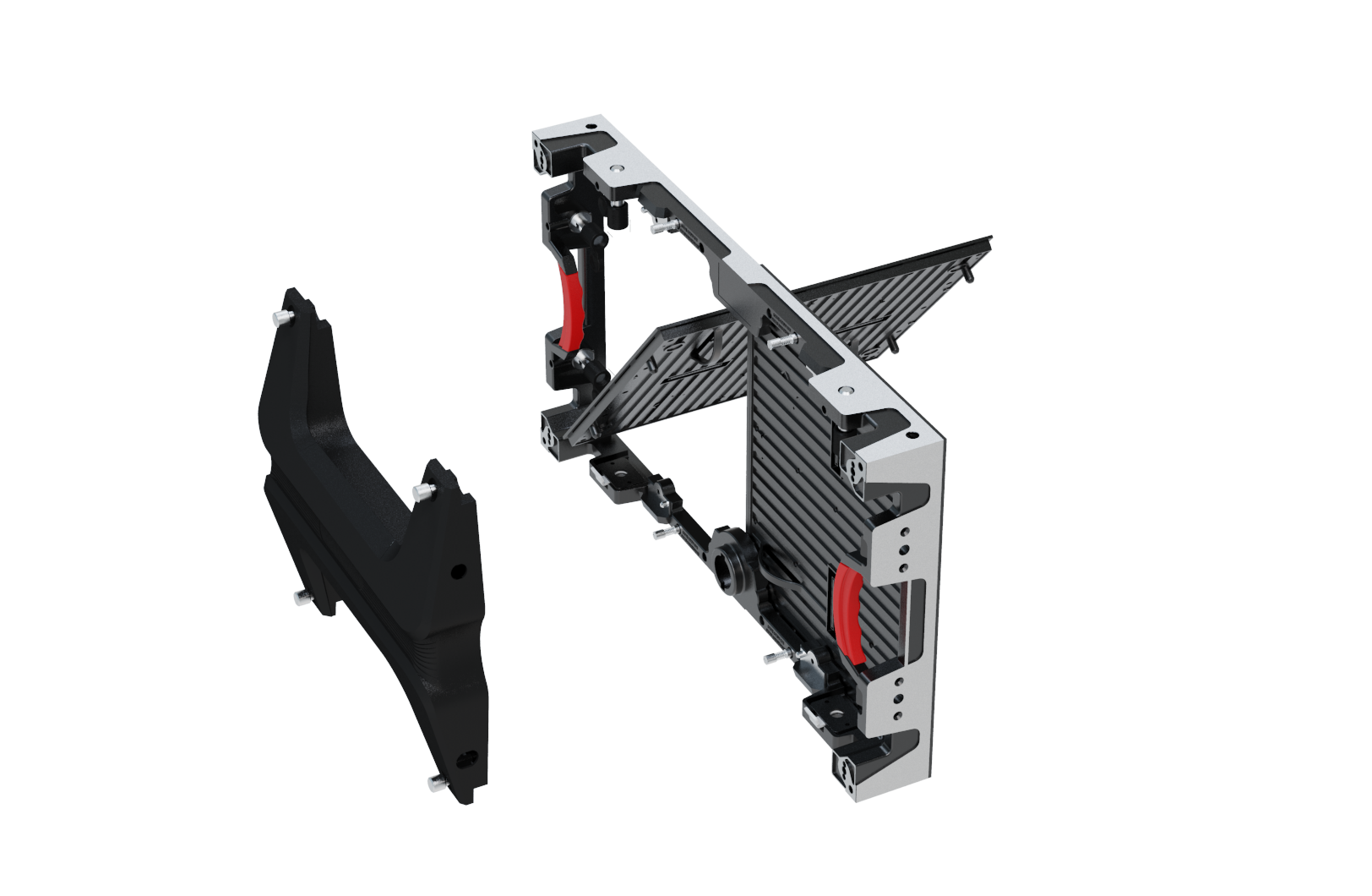

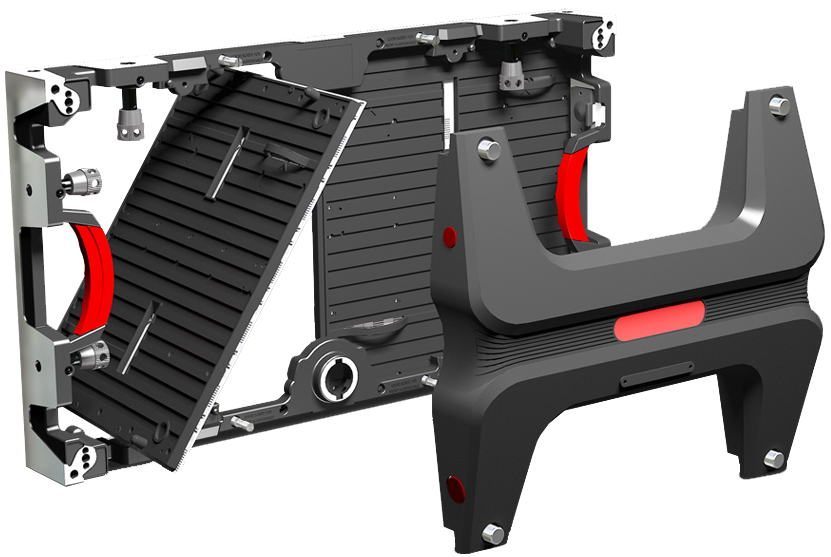

Axion mobile offers the ease of 16:9 LED displays in a rental panel. Axion mobile panels are the popular size for fixed 16:9 displays at 600 x 337.5 mm. Available in the most popular 16:9 pixel pitches, Axion mobile is optimized for native 16:9 displays at 2K, 4K, 8K, and more!
Axion mobile’s 16:9 panel aspect also makes it easy to make dual displays with a 32:9 aspect ratio.

Special Configuration

Resources

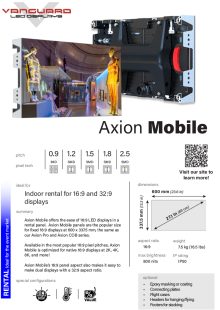

Axion Mobile Cutsheet

Rental
BROCHURE

Tungsten Series LED Panels | Robust rental panels from 1.5 - 3.9mm

Add-ons & Accessories

Panel Specification Table

SKU Name	V.AM09sn.pnl11	V.AM12sn.pnl11	V.AM15sn.pnl11	V.AM18sn.pnl11	V.AM25sn.pnl11	V.AM37sn.pnl11	V.AM09se.pnl11	V.AM12se.pnl11	V.AM15se.pnl11	V.AM18se.pnl11	V.AM25se.pnl11	V.AM37se.pnl11	V.AM09sl.pnl11	V.AM12sl.pnl11	V.AM15sl.pnl11	V.AM18sl.pnl11	V.AM25sl.pnl11	V.AM37sl.pnl11	V.AM09ss.pnl11	V.AM12ss.pnl11	V.AM15ss.pnl11	V.AM18ss.pnl11	V.AM25ss.pnl11	V.AM37ss.pnl11	V.AM18sc.pnl11	V.AM25sc.pnl11	V.AM37sc.pnl11	V.AM18sv.pnl11	V.AM25sv.pnl11	V.AM37sv.pnl11	V.AM18sp.pnl11	V.AM25sp.pnl11	V.AM37sp.pnl11
Pitch	0.9	1.3	1.6	1.9	2.5	3.8	0.9	1.3	1.6	1.9	2.5	3.8	0.9	1.3	1.6	1.9	2.5	3.8	0.9	1.3	1.6	1.9	2.5	3.8	1.9	2.5	3.8	1.9	2.5	3.8	1.9	2.5	3.8
True Pitch	0.94	1.25	1.56	1.88	2.50	3.75	0.94	1.25	1.56	1.88	2.50	3.75	0.94	1.25	1.56	1.88	2.50	3.75	0.94	1.25	1.56	1.88	2.50	3.75	1.88	2.50	3.75	1.88	2.50	3.75	1.88	2.50	3.75
	DIODES
Pixel Pitch	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD
Connector	Copper	Copper	Copper	Copper	Copper	Copper	Flip-chip	Flip-chip	Flip-chip	Flip-chip	Flip-chip	Flip-chip	Copper	Copper	Copper	Copper	Copper	Copper	Flip-chip	Flip-chip	Flip-chip	Flip-chip	Flip-chip	Flip-chip	Copper	Copper	Copper	Copper	Copper	Copper	Flip-chip	Flip-chip	Flip-chip
Common	Cathode	Anode	Anode	Anode	Anode	Anode	Cathode	Cathode	Cathode	Cathode	Cathode	Cathode	Anode	Anode	Anode	Anode	Anode	Anode	Cathode	Cathode	Cathode	Cathode	Cathode	Cathode	Anode	Anode	Anode	Anode	Anode	Anode	Cathode	Cathode	Cathode
	IMAGES
Brightness	600	800	800	1,000	1,000	1,200	1,000	1,000	1,000	1,000	1,000	1,000	600	600	600	800	800	4,000	2,000	3,500	4,000	4,000	4,000	4,000	1,000	1,000	800	1,000	1,000	1,000	1,200	1,200	1,200
Panel Resolution	640 × 360	480 × 270	384 × 216	320 × 180	240 × 135	160 × 90	640 × 360	480 × 270	384 × 216	320 × 180	240 × 128	160 × 90	640 × 360	480 × 270	384 × 216	320 × 180	240 × 135	160 × 90	640 × 360	480 × 270	384 × 216	320 × 180	240 × 135	160 × 90	320 × 180	240 × 135	160 × 90	320 × 180	240 × 135	160 × 90	320 × 180	240 × 135	160 × 90
Viewing Angle	160° / 160°	160° / 160°	160° / 160°	140° / 140°	140° / 140°	140° / 140°	160° / 160°	170° / 170°	170° / 170°	170° / 170°	170° / 170°	170° / 170°	160° / 160°	160° / 160°	160° / 160°	140° / 140°	140° / 140°	140° / 140°	160° / 160°	170° / 170°	170° / 170°	170° / 170°	170° / 170°	170° / 170°	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°	170° / 170°	170° / 170°	170° / 170°
LED Lifetime	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000	100000
Contrast	5,000:1	6,000:1	6,000:1	6,000:1	6,000:1	6,000:1	10,000:1	50,000:1	50,000:1	50,000:1	50,000:1	50,000:1	6,000:1	6,000:1	6,000:1	6,000:1	6,000:1	50,000:1	20,000:1	20,000:1	20,000:1	20,000:1	20,000:1	20,000:1	6,000:1	6,000:1	6,000:1	6,000:1	6,000:1	6,000:1	50,000:1	50,000:1	50,000:1
Refresh Rate	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840	3840
Scan Rate	1/60(h)	1/27(h)	1/27(h)	1/30(h)	1/27(h)	1/15(h)	1/36(h)	1/27(h)	1/27(h)	1/15(h)	1/16(h)	1/15(h)	1/60(h)	1/45(h)	1/54(h)	1/45(h)	1/45(h)	1/15(h)	1/36(h)	1/27(h)	1/27(h)	1/15(h)	1/27(h)	1/15(h)	1/30(h)	1/27(h)	1/15(h)	1/15(h)	1/15(h)	1/15(h)	1/15(h)	1/15(h)	1/15(h)
	PHYSICAL
Panel Dimensions (w × h, mm)	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5	600 × 337.5
Panel Depth (mm)	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73
Panel Dimensions (w × h, in)	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3	23.6 × 13.3
Panel Depth (in)	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9
Panel Weight (kg)	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7	7.7
Panel Weight (lbs)	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17	17
Panel Frame Material	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium
Service Access	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear
	POWER
Maximum WATTS Per Panel	109	138	132	122	122	122	61	61	61	61	61	61	109	132	126	118	132	122	61	122	118	113	111	109	118	122	122	122	122	122	122	122	122
Average WATTS Per Panel	38	48	46	43	43	43	21	21	21	21	21	21	38	46	44	41	46	43	21	43	41	40	39	38	41	43	43	43	43	43	43	43	43
Maximum WATTS Per Square Meter	540	680	650	600	600	600	300	300	300	300	300	300	540	650	620	580	650	600	300	600	580	560	550	540	580	600	600	600	600	600	600	600	600
Average WATTS Per Square Meter	189	238	228	210	210	210	105	105	105	105	105	105	189	228	217	203	228	210	105	210	203	196	193	189	203	210	210	210	210	210	210	210	210
Input Voltage	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz
Max AMPS Per Cascade	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
	CONNECTIVITY
Connectors \| Power	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon	Neutrik PowerCon
Connectors \| Data	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon	Neutrik EtherCon
Recommended cabling path	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
	ENVIRONMENT
Operating Temperature	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C	-10°C - +40°C
Operating Humidity	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing	10% - 80%, non-condensing
IP Rating	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41	IP41

Frequently Asked Questions

What is the Axion Mobile series?

Axion Mobile is our native 16:9 indoor rental LED series — the Axion Pro module family housed in rental-configured frames built for repeated assembly, transport, and touring. With pitches from 0.9mm to 3.75mm across the same Special Configurations as Axion Pro, it delivers fixed-installation image quality that travels.

How is Axion Mobile related to Axion Pro?

They share the same modules — Axion Mobile mounts the Axion Pro module family into rental frames engineered for road life. Axion Mobile is ideal for temporary display setups for events, conferences, and trade shows, while Axion Pro is for fixed and permanent installation throughout the display's lifecycle.

What makes Axion Mobile's rental panels unique?

Axion Mobile combines rental flexibility with a native 16:9 aspect ratio — each panel measures 600×337.5mm, so walls assemble to true 16:9 formats ideal for high-definition 2K, 4K, and 8K content. Most rental panels are square; Axion Mobile builds resolution-true widescreen walls without partial panels or cropped content.

What pixel pitches does Axion Mobile offer?

Axion Mobile comes in six pitches — 0.9mm, 1.25mm, 1.5mm, 1.9mm, 2.5mm, and 3.75mm — matching the Axion Pro range in rental form. The fine end serves corporate events and broadcast positions where audiences and cameras sit close; the larger pitches serve bigger rooms economically.

What configuration options are available for Axion Mobile?

We call these Special Configurations — factory-built variants of the same panel, each tuned for a different priority. Axion Mobile mirrors Axion Pro's lineup: Normal, the standard configuration; Cool-Efficient, with flip-chip pixels and common cathode power for higher contrast and cooler operation; Value, at the lowest cost; High Bright, reaching up to 4,000 nits; and TAA, compliant for U.S. government procurement.

Is a TAA-compliant version of Axion Mobile available?

Yes — Axion Mobile's TAA class meets Trade Agreements Act requirements for U.S. government purchase, bringing rental-format LED to federal and defense applications. These same panels form the foundation of our deployable tactical display systems used in military field operations.

Can Axion Mobile create ultra-wide screens?

Yes — the native 16:9 panel combines naturally into 32:9 ultra-wide formats and beyond, serving panoramic conference screens, control room rentals, and immersive presentation environments. Content scales cleanly across the width because the underlying geometry stays true to standard video ratios.

Is Axion Mobile simple to assemble and disassemble?

Yes — standardized panel sizing, quick-connect hardware, and the 16:9 geometry make setup fast and alignment predictable, with content mapping falling into place because the wall's ratio matches the source. Crews install and dismantle efficiently through the compressed schedules of events and trade shows.

What types of rental events are ideal for Axion Mobile?

Axion Mobile excels at corporate presentations, trade shows, live broadcasts, product launches, and any rental event demanding high-resolution 16:9 or 32:9 walls with excellent image quality. It's the rental choice when the content is polished, the audience is close, and the wall must look like a permanent installation.

How is Axion Mobile serviced?

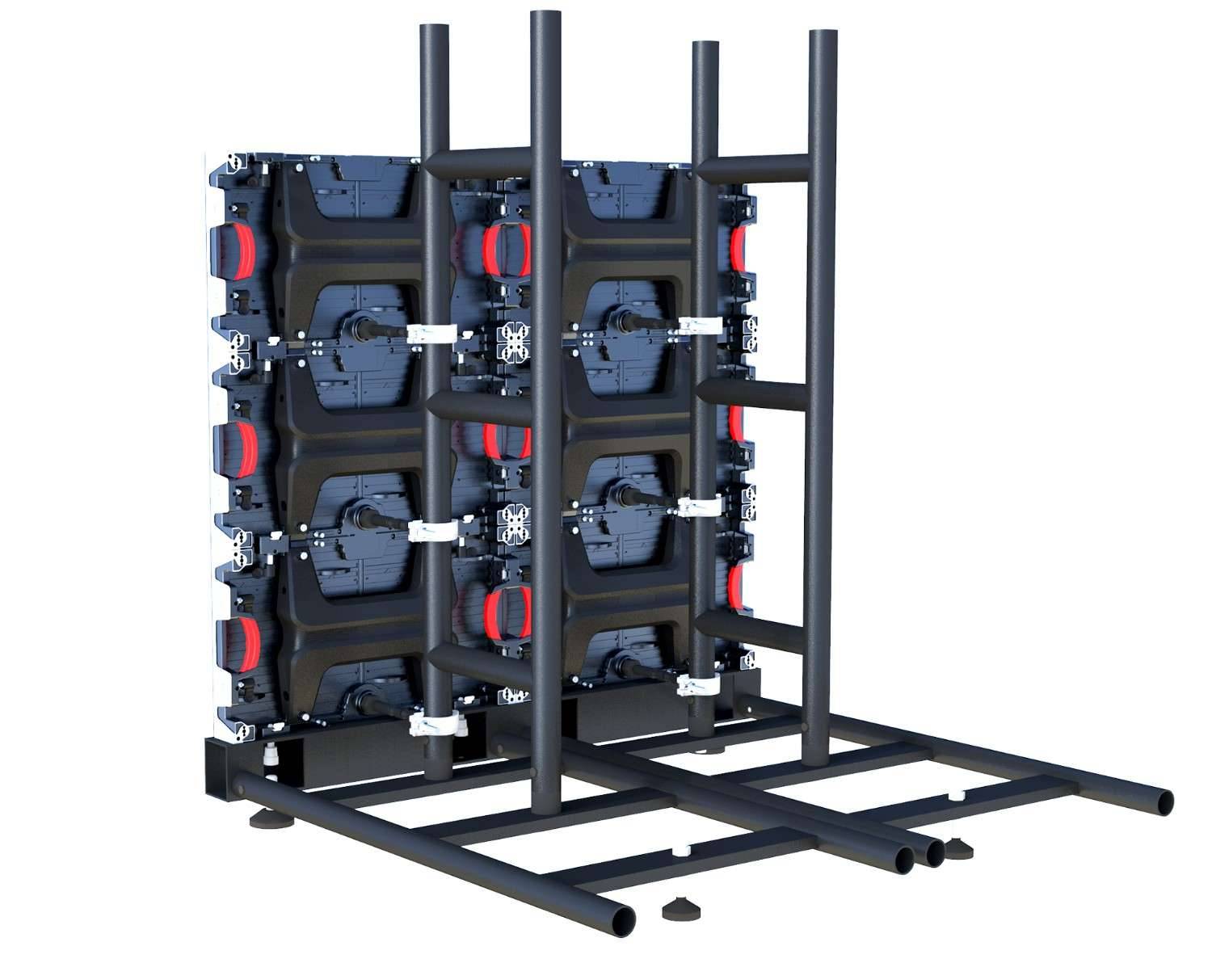

Axion Mobile supports front and rear service independently — front access in tight event builds, rear access on ground-stacked or flown walls — with hot-swappable modules replaceable mid-event in minutes. Spares are plentiful and always color-matched.

What warranty comes with Axion Mobile?

Axion Mobile includes a 2-year warranty extendable to 5 years, with premium configurations carrying 3 years extendable to 10, plus sufficient spare parts with every fleet. Warranty depth on rental inventory protects the economics of every panel across seasons of bookings.
