Tungsten

1.5

SMD

1.9

SMD

2.6

SMD

3.9

SMD

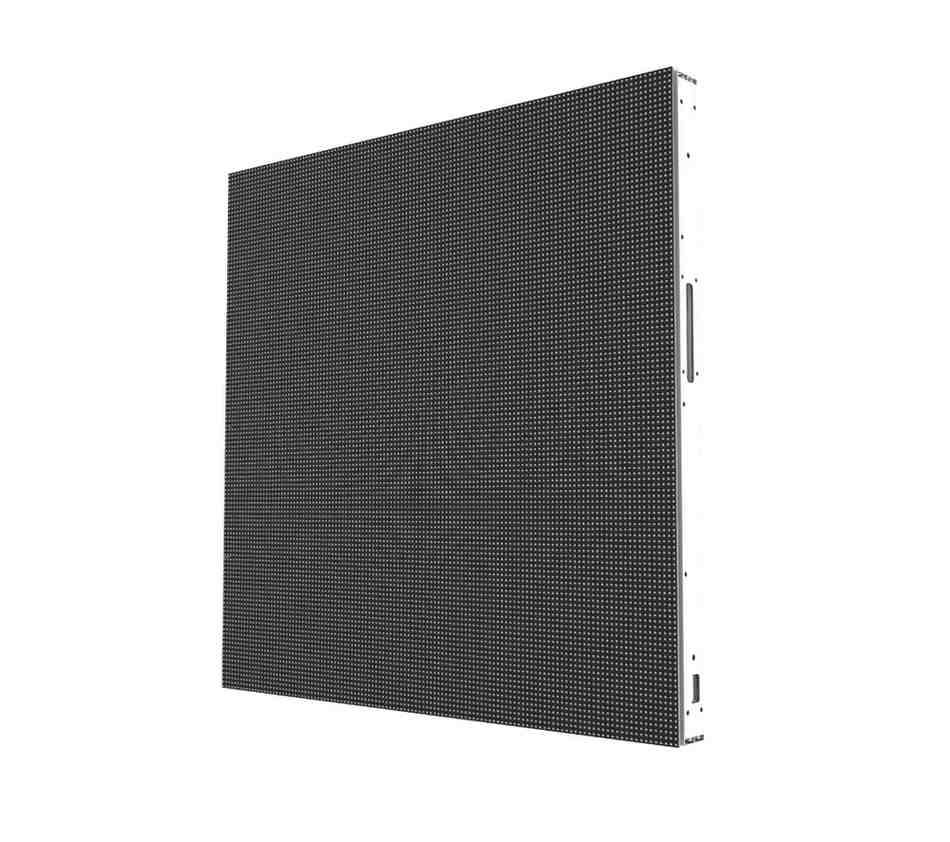

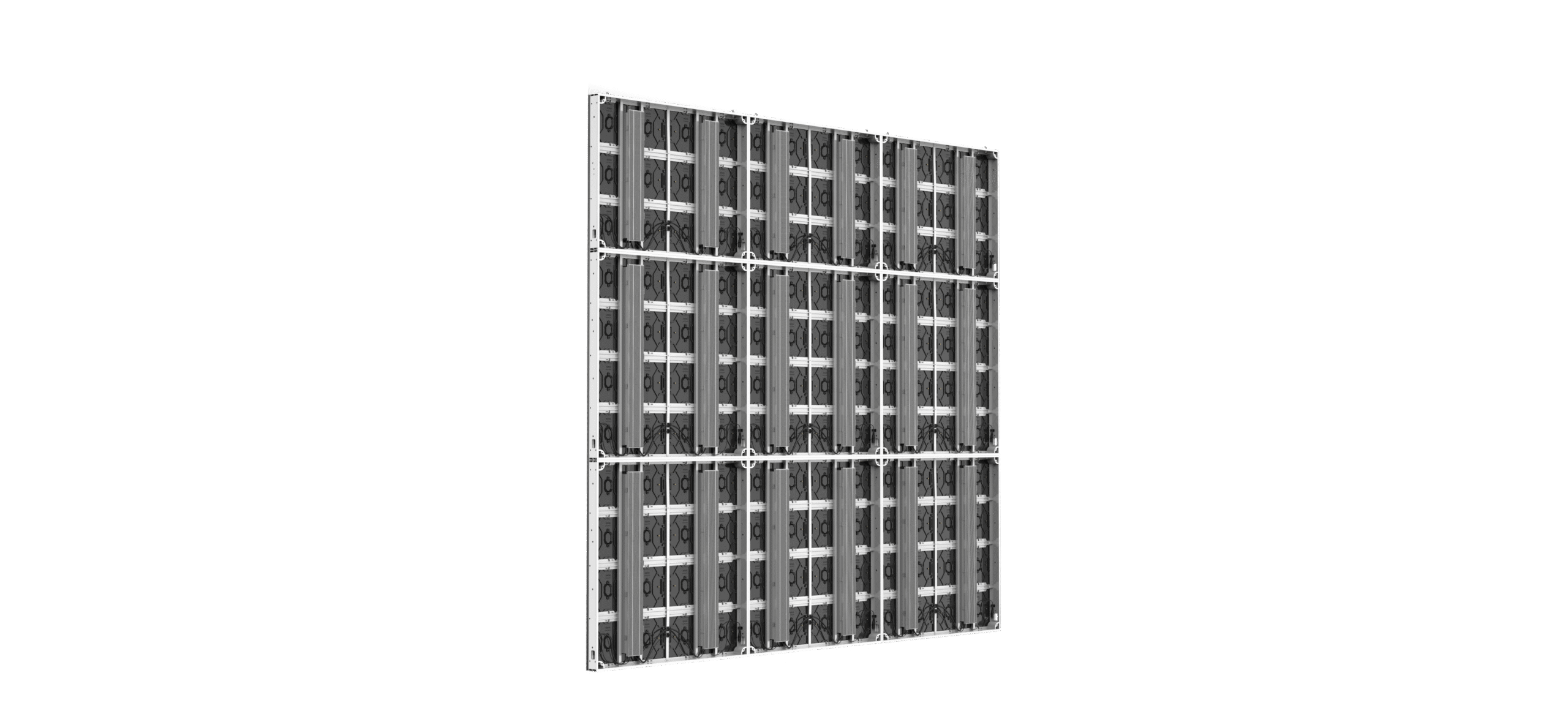

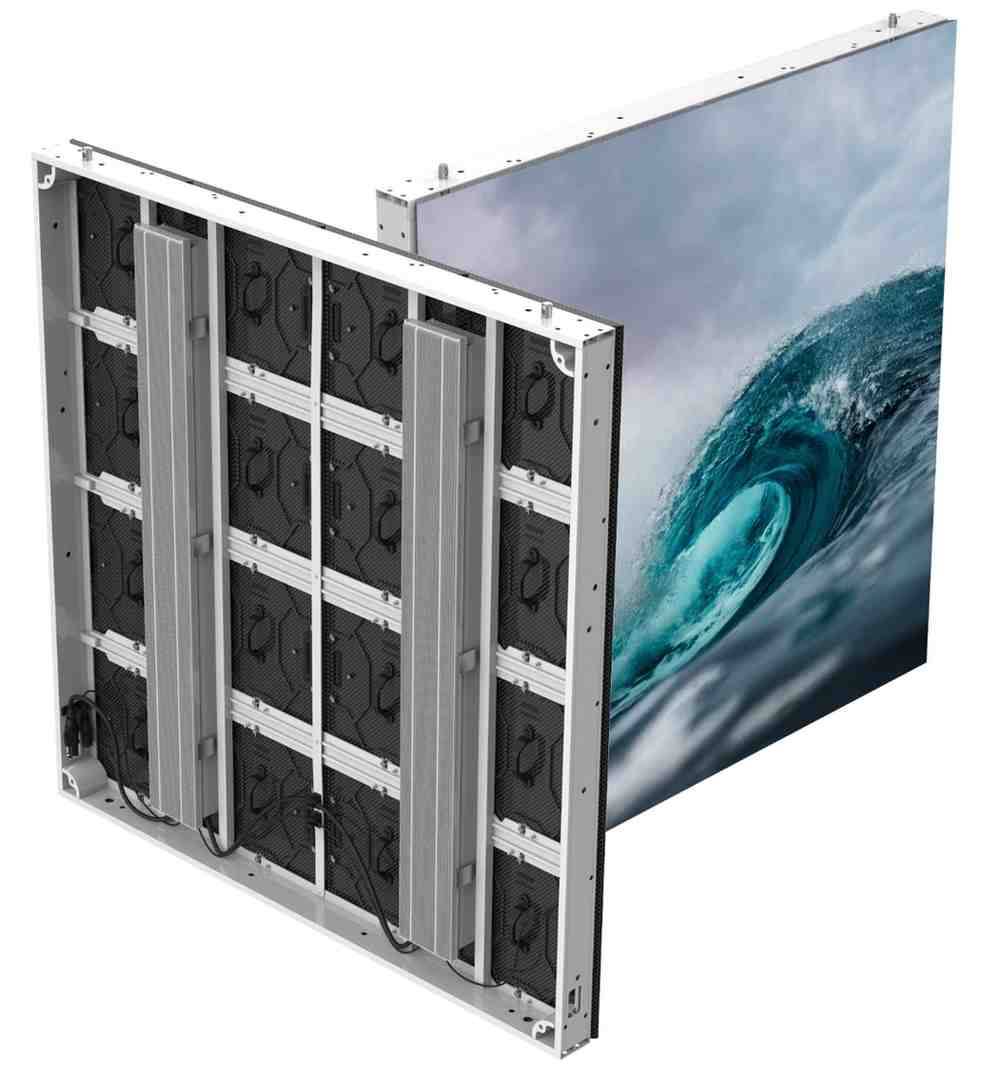

Tungsten is an excellent choice for most rental applications with a stout 500x500mm and 500×1000 mm panel, combined with fine-pitch options typically only seen with fixed installation products. Tungsten has column-to-column curving options up to -6 degrees to +6 degrees. Column-to-column curving set by a rotating bracket with fixed angles, reducing the need to precisely set an angle for every panel. Panels feature a flipout metal shield which protects the corner pixels during handling, reducing damages.

Special Configuration

Resources

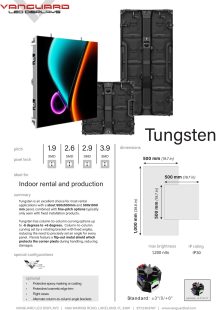

Tungsten Cutsheet

Rental
BROCHURE

Tungsten Series LED Panels | Robust rental panels from 1.5 - 3.9mm

Add-ons & Accessories

Panel Specification Table

SKU Name	V.TU15in.pnl11	V.TU15in.pnl12	V.TU19sn.pnl11	V.TU19sn.pnl12	V.TU26sn.pnl11	V.TU26sn.pnl12	V.TU39sn.pnl11	V.TU39sn.pnl12	V.TU15ix.pnl11	V.TU15ix.pnl12	V.TU19sx.pnl11	V.TU19sx.pnl12	V.TU26sx.pnl11	V.TU26sx.pnl12	V.TU39sx.pnl11	V.TU39sx.pnl12	V.TU15ic.pnl11	V.TU15ic.pnl12	V.TU19sc.pnl11	V.TU19sc.pnl12	V.TU26sc.pnl11	V.TU26sc.pnl12	V.TU39sc.pnl11	V.TU39sc.pnl12	V.TU15iv.pnl11	V.TU15iv.pnl12	V.TU19sv.pnl11	V.TU19sv.pnl12	V.TU26sv.pnl11	V.TU26sv.pnl12	V.TU39sv.pnl11	V.TU39sv.pnl12	V.TU15ip.pnl11	V.TU15ip.pnl12	V.TU19ip.pnl11	V.TU19ip.pnl12	V.TU26ip.pnl11	V.TU26ip.pnl12	V.TU39ip.pnl11	V.TU39ip.pnl12
Pitch	1.6	1.6	2.0	2.0	2.6	2.6	3.9	3.9	1.6	1.6	2.0	2.0	2.6	2.6	3.9	3.9	1.6	1.6	2.0	2.0	2.6	2.6	3.9	3.9	1.6	1.6	2.0	2.0	2.6	2.6	3.9	3.9	1.6	1.6	2.0	2.0	2.6	2.6	3.9	3.9
True Pitch	1.56	1.56	1.95	1.95	2.60	2.60	3.91	3.91	1.56	1.56	1.95	1.95	2.60	2.60	3.91	3.91	1.56	1.56	1.95	1.95	2.60	2.60	3.91	3.91	1.56	1.56	1.95	1.95	2.60	2.60	3.91	3.91	1.56	1.56	1.95	1.95	2.60	2.60	3.91	3.91
	DIODES
Pixel Pitch	IMD	IMD	SMD	SMD	SMD	SMD	SMD	SMD	IMD	IMD	SMD	SMD	SMD	SMD	SMD	SMD	IMD	IMD	SMD	SMD	SMD	SMD	SMD	SMD	IMD	IMD	SMD	SMD	SMD	SMD	SMD	SMD	IMD	IMD	SMD	SMD	SMD	SMD	SMD	SMD
Connector	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper
Common	cathode	cathode	Anode	Anode	Anode	Anode	Anode	Anode	cathode	cathode	Anode	Anode	Anode	Anode	Anode	Anode	cathode	cathode	Anode	Anode	Anode	Anode	Anode	Anode	cathode	cathode	Anode	Anode	Anode	Anode	Anode	Anode	cathode	cathode	Anode	Anode	Anode	Anode	Anode	Anode
	IMAGES
Brightness	1,000	1,000	1,000	1,000	900	900	900	900	1,200	1,200	1,200	1,200	1,200	1,200	900	900	700	700	900	900	900	900	900	900	700	700	1,200	1,200	1,200	1,200	900	900	700	700	1,200	1,200	1,200	1,200	900	900
Panel Resolution	320 × 640	320 × 320	256 × 512	256 × 256	192 × 384	192 × 192	128 × 256	128 × 128	320 × 640	320 × 320	256 × 512	256 × 256	192 × 384	192 × 192	128 × 256	128 × 128	320 × 640	320 × 320	256 × 512	256 × 256	192 × 384	192 × 192	128 × 256	128 × 128	320 × 640	320 × 320	256 × 512	256 × 256	192 × 384	192 × 192	128 × 256	128 × 128	320 × 640	320 × 320	256 × 512	256 × 256	192 × 384	192 × 192	128 × 256	128 × 128
Viewing Angle	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°
LED Lifetime	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000	50000
Contrast	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00	8000:01:00
Refresh Rate	7680	7680	3840	3840	3840	3840	3840	3840	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680	3840	3840	3840	3840	3840	3840	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680	7680
Scan Rate	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)	1/32(h)
	PHYSICAL
Panel Dimensions (w × h, mm)	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500	500 × 1000	500 × 500
Panel Depth (mm)	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5	72.5
Panel Dimensions (w × h, in)	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7	19.7 × 39.4	19.7 × 19.7
Panel Depth (in)	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9	2.9
Panel Weight (kg)	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Panel Weight (lbs)	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6	17.6
Panel Frame Material	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium	Die-cast Aluminium
Service Access	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear
	POWER
Maximum WATTS Per Panel	400	200	400	200	300	150	300	150	400	200	400	200	300	150	300	150	400	200	400	200	300	150	300	150	400	200	400	200	300	150	300	150	400	200	400	200	300	150	300	150
Average WATTS Per Panel	140	70	140	70	105	53	105	53	140	70	140	70	105	53	105	53	140	70	140	70	105	53	105	53	140	70	140	70	105	53	105	53	140	70	140	70	105	53	105	53
Maximum WATTS Per Square Meter	800	800	800	800	600	600	600	600	800	800	800	800	600	600	600	600	800	800	800	800	600	600	600	600	800	800	800	800	600	600	600	600	800	800	800	800	600	600	600	600
Average WATTS Per Square Meter	280	280	280	280	210	210	210	210	280	280	280	280	210	210	210	210	280	280	280	280	210	210	210	210	280	280	280	280	210	210	210	210	280	280	280	280	210	210	210	210
Input Voltage	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz
Max AMPS Per Cascade	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
	CONNECTIVITY
Connectors \| Power	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon	Seetronic Powercon
Connectors \| Data	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon	Seetronic Ethercon
Recommended cabling path	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal
	ENVIRONMENT
Operating Temperature	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C
Operating Humidity	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing	10% - 90%, non-condensing
IP Rating	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30

Frequently Asked Questions

What is the Tungsten series?

Tungsten is our indoor rental and staging LED series — 500×500mm panels engineered for the constant assembly, teardown, and transport of touring life. With pitches from 1.5mm to 3.9mm, refresh capability to 7,680Hz, and purpose-built handling protection, Tungsten is the workhorse of indoor events.

Is Tungsten a good choice for rental and staging?

Rental screens live hard: installed, dismantled, cased, and trucked show after show, handled by different stagehands at every stop. Tungsten's 500×500mm panels are built stout for exactly that life — strong construction, protected corner and bottom-row pixels, and a panel design engineered for quick, efficient installation and teardown at every venue.

What pixel pitch choices does Tungsten offer?

Tungsten comes in four pitches — 1.5mm, 1.9mm, 2.6mm, and 3.9mm — fine-pitch territory usually reserved for fixed installations, delivered in rental form. Sharp, high-quality visuals hold up even where event audiences and cameras view the wall from close range.

Can you create curved LED walls with Tungsten?

Yes — Tungsten curves from −6 degrees concave to +6 degrees convex between each column, using rotating brackets with fixed angle stops. Curves form during normal assembly with no manual measurement or per-panel tweaking: set the bracket angle, lock the column, and the sweep is exact and repeatable show after show.

How does Tungsten protect its pixels during transport and setup?

Each panel carries flip-out metal corner shields that deploy to guard the most vulnerable pixels — corners and bottom rows — during handling, casing, and stacking. The shields fold away in the assembled wall and flip back for the load-out, cutting damage rates, repair costs, and long-term wear across a rental fleet's hardest-working panels.

Is Tungsten suitable for broadcast and xR production?

Yes — Tungsten's Production configuration delivers 1,200 nits with 7,680Hz refresh for clean on-camera performance, purpose-built for touring broadcast sets, virtual production builds, and filmed live events. The same rental-grade panels that survive the truck also satisfy the camera.

How quickly does Tungsten assemble and tear down?

Fast by design — panels connect and align with quick-locking hardware, curves set through bracket stops rather than measurement, and the 500×500mm format keeps every unit one-person manageable in and out of road cases. Crews unfamiliar with the system are productive within their first build.

What types of events work well with Tungsten?

Tungsten serves concerts, live events, trade shows, exhibitions, touring productions, and corporate presentations — any indoor event needing durable panels, sharp image quality, and fast setup and dismantle. Rental houses value it for fleet durability; producers value it for how it looks on stage and on camera.

How is Tungsten serviced?

Tungsten is front and rear-serviceable with hot-swappable modules and components — repairs happen at the venue, mid-build or mid-show, in minutes. Spare parts travel with the fleet, and module-level service keeps individual panels earning rather than benched for depot repair.

What warranty comes with Tungsten?

Tungsten includes a 2-year warranty, extendable to 5 years, with spare parts included. For rental operations, warranty coverage on touring inventory directly protects the economics of every panel in the fleet across seasons of bookings.

How does Tungsten differ from Tungsten Pro?

Environment and pitch: Tungsten is the indoor rental line at 1.5–3.9mm, while Tungsten Pro adds weatherproof IP65 protection with the finest pitches (1.25–1.9mm) for outdoor events and close-viewing builds. Same rental philosophy — stout, fast, road-ready — split by where the show happens.
